Envisioning a New Rail Hub for Atlanta: Part III

This is the final entry in a series looking at conflict between Amtrak and Atlanta's proposed Beltline. Part I looked at the context. Yesterday, I considered the conflict. Today, I look at solutions that will result in a win for everyone.

Part III: Solutions
The Gulch & The MMPT
As I pointed out yesterday, there are some issues that must be resolved between the different parties, however solutions are possible that will result in a win for everyone. The situation is difficult because of the shape of Atlanta's rail network. The map below shows the location of the currently proposed Multimodal Passenger Terminal (MMPT) in relation to Atlanta's former railway terminals. Despite having a Union Station, Atlanta never actually had all of its trains under one roof. The stations were several blocks apart. With a multitude of railways serving the city, it was difficult to locate a station convenient to all.


Both of the stations were demolished in 1972 after their passenger services ceased. The larger of the two was The Terminal. It was one of the flagship stations of the Southern Railway. Constructed in 1905 and served the Southern, Seaboard Airline, Atlanta and West Point, and the Central of Georgia. The tracks at the station were oriented in a north-south manner.

Several blocks north, was Union Station. This station's tracks were located east-west, parallel to Marietta Street. Although it's name suggested a larger operation, the station only served 3 of Atlanta's 7 railroads. Trains from the Georgia Railroad, the Atlantic Coast Line, and the Louisville and Nashville called at Union Station.

Since the mid-1990s, the Georgia Department of Transportation has proposed building a facility in Downtown Atlanta to handle all of Atlanta's ground transportation needs. Located along Forsyth Street, the proposed Multimodal Passenger Terminal (MMPT) is directly across the street from Five Points, the hub of the MARTA subway system. This MMPT would handle all Amtrak services, any commuter rail services that come about, and all regional and intercity bus services.

Dealing with the Conflict
In relation to the Beltline, the design of the MMPT is very important. With east-west platforms, which are all that is currently proposed, the Crescent can only serve the station two ways, assuming it continue to run on a New Orleans-Birmingham-Atlanta-Charlotte-New York routing. Amtrak's preferred method is for the train to diverge from its current routing at Armour Yard, traverse the Decatur Belt (Northeast segment of the Beltline), pass through the MMPT, and then return to its current routing along the western trunk.

An alternative approach for the Crescent would have it arrive from and depart to the north. It could follow its current routing to the wye near the waterworks, turn south along the trunk line and pull into the MMPT from the northwest. To depart, the train would back toward the south before switching to a northbound track. Returning the same way it came, it would return to its present route at the wye next to the waterworks.

I pointed out yesterday; Amtrak has an aversion to backing trains. Many cities’ grand terminals and convenient downtown stations have faced the axe because their location would require trains to reverse out of them. This policy is what has created the fight over the Beltline. I’m not sure if this conflict would be solved by having a switcher engine in Atlanta to pull the Crescent out of the station and around the wye.

Another alternative approach, which I suggested yesterday, would be to reroute the Crescent to New Orleans over its original routing through Montgomery. For this route, the MMPT would require north-south platforms, but that’s probably a necessity anyway if Atlanta is ever going to have a decent commuter rail network.

In order to maintain service to Birmingham and Meridian, I propose reinstating the Southerner, merged with the Crescent in 1970, to run from Atlanta to New Orleans over the current route of the Crescent. It makes sense to extend this route through Augusta to Columbia, where it could follow the Silver Star to New York. This route would use the east-west platforms at the MMPT.

Another gap in the Amtrak network could easily be filled by way of Atlanta. Also using the north-south platforms I propose adding at the MMPT, could be a new service linking Chicago to Miami. I've shown these three potential Amtrak routes/reroutes on the map below.

Commuter and Intrastate Rail
In addition to these routes, Atlanta's new MMPT could become the hub of rail lines serving Metropolitan Atlanta and other areas in Georgia. Rail travel, especially if it were able to be upgraded to higher speeds, would serve as an excellent link between Georgia's smaller metropolitan areas. Rail lines linking Chattanooga, Macon, Savannah, and other cities would help to make Georgia's transportation infrastructure more robust and would offer an alternative to intraregional air travel which can be very expensive and inefficient.
Atlanta, with its history as a rail hub, is an excellent place for a commuter rail network. There are 11 radial rail lines with Atlanta at their center. Commuter rail is a cheap way for Metro Atlanta to create a regional rail system. A basic system has been being pursued by GDOT for over a decade, but so far funding has not been able to be organized.

I intend to do an in-depth post on this topic later, but for now, I'll stop with this teaser. The map below shows a potential Metro Atlanta and State rail network centered on the Atlanta MMPT.


Rethinking the MMPT

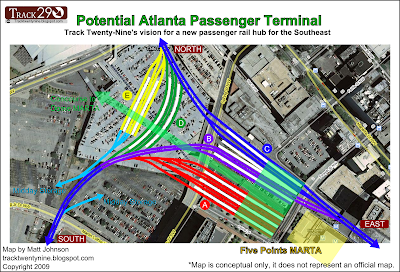

I've sketched out a conceptual plan for a rail terminal in Downtown Atlanta. The station's headhouse would stand across Forsyth Street from the Five Points MARTA station. The starter platforms provided for the proposed Griffin commuter rail line and other services from the south are shown in red. Eventually, the station would need to expand to increase capacity, including adding platforms to serve trains from the east (blue, purple) and from the north (green, blue, yellow).

The concourse from the main building to the north-south tracks could continue to the Dome MARTA station and Phillips Arena/CNN Center. The entire gulch could be redeveloped, as is proposed, with air rights development over the tracks.

Station Details
Under my proposal, the station would be used as follows.

Section A: 6 tracks, 3 platforms
  • Georgia Inter-City Trains
    • Atlanta-Macon-Savannah
    • Atlanta-Macon-Valdosta
    • Atlanta-Macon-Albany
    • Atlanta-Newnan-Columbus
  • Atlanta Commuter Trains
    • McDonough Line
    • Griffin Line
    • Senoia Line
    • Newnan Line
Section B: 3 tracks, 2 platforms
  • Any commuter or Georgia trains from sections A or C
Section C: 3 tracks, 2 platforms
  • Amtrak
    • Southerner: New Orleans-Birmingham-Columbia-New York
  • Georgia Inter-City Trains
    • Atlanta-Augusta
    • Atlanta-Cartersville-Chattanooga
  • Atlanta Commuter Trains
    • Madison Line
    • Athens Line
    • Gainesville Line
    • Canton Line
    • Cartersville Line
    • Rome Line
    • Bremen Line
Section D: 4 tracks, 2 platforms
  • Amtrak
    • Crescent: New Orleans-Montgomery-Charlotte-New York
    • Comet: Chicago-Nashville-Savannah-Miami
  • Overflow from Section E
Section E: 4 tracks, 2 platforms (Optional, added as capacity dictates)
  • Atlanta Commuter Trains
    • Athens Line
    • Gainesville Line
    • Canton Line
    • Cartersville Line
    • Rome Line
    • Bremen Line
Regardless of how this situation is solved, an amicable solution must be reached. Amtrak should not be against local transit. Indeed, Amtrak will benefit from a more urban and pedestrian friendly Atlanta. And MARTA and the Beltline will benefit from improved Amtrak service. This debate shows how much we need to have a discussion in this country between different levels of government. It also shows how much we need to create a uniform transportation policy in this country--one which looks at all modes as complementary components of one transportation system.

I encourage all parties involved to work toward a win-win situation. Everyone needs to be willing to make compromises, but we should not have to sacrifice one great transit project for another great transportation investment.
